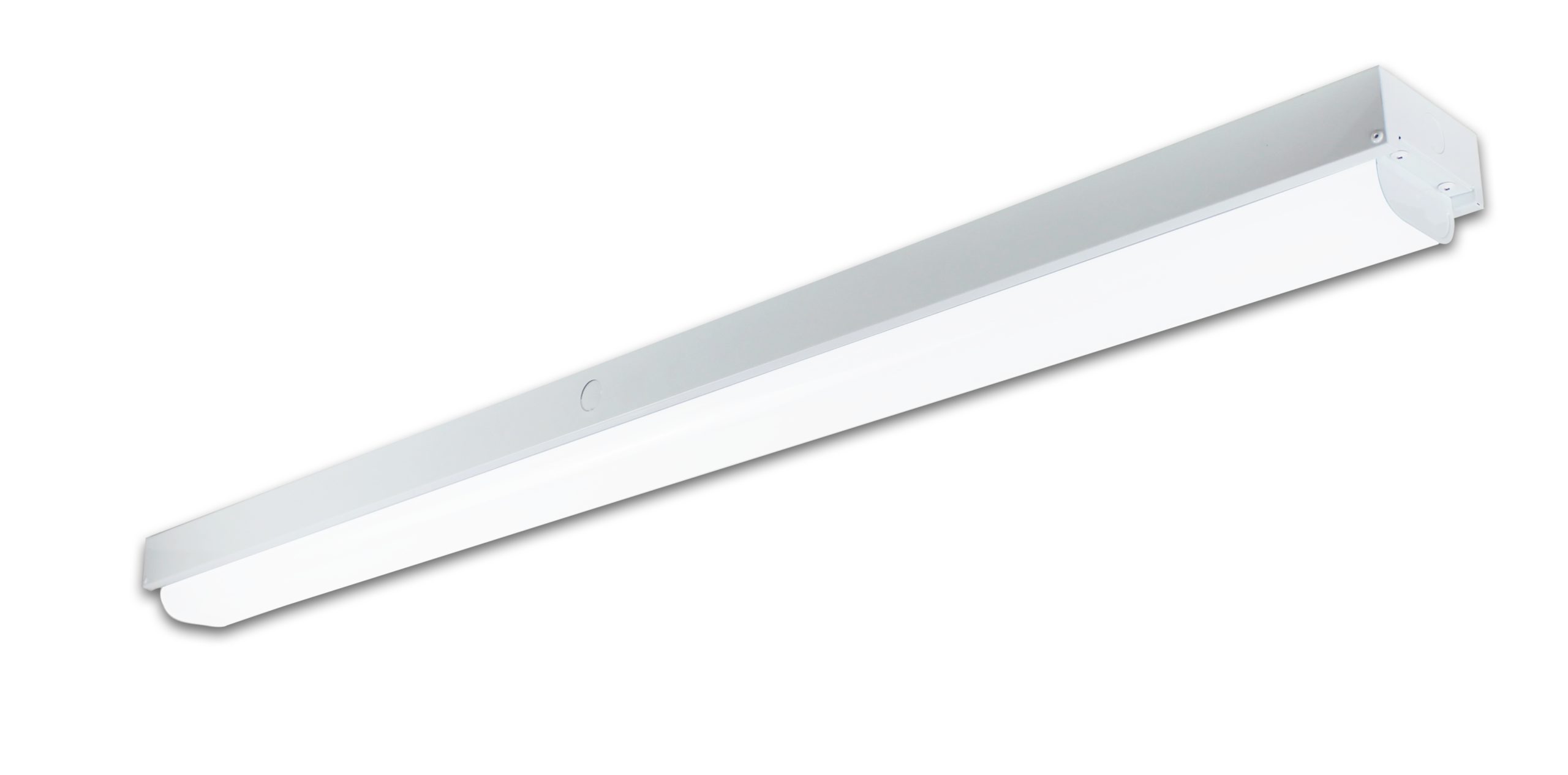

SWL™ Series – CCT Adjustable LED Stairwell Fixture

SWL™ Series - CCT Adjustable LED Stairwell Fixture

Description

The SWL Series of LED stairwell fixtures are a cost effective, energy-saving replacement for less efficient fluorescent fixtures. The SWL fixture features 120° light angle covered with an polycarbonate lens and a one-piece fabricated steel body. These LED stairwell fixtures are ideal for lighting in parking garages and stairwells and/or other applicable building lighting in residential multi-family buildings, workshops, utility rooms, corridors and other commercial applications.

Features

  • CCT Adjustable Switch provides optional kelvin temperatures 3000/3500/4000K
  • Rugged construction, solid die formed, cold rolled steel housing
  • Optional sensors available
  • Long life rating at 60,000 hours
  • 5 year warranty

Product Listing

Specifications Features
Dimensions
Options
Configurations
Quick Ship
Downloads
Videos
Specifications Features
Construction

Rugged construction, solid die formed, cold-rolled steel housing. All fixture surfaces powder coated after fabrication. Frosted acrylic diffusers provide even consistent light while reducing glare. Lens design and materials provide uniform appearance without pixilation.

Installation

Suitable for wall or ceiling mounting, vertical or horizontal.

Electrical

Optional 0-10V continuous dimming driver that works with any standard 0-10V control/dimmer. Long-Life LED’s 60,000 hours at L80 with projected life over 100,000 hours for reduced life cycle maintenance costs.

Qualification

All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels. Damp location labeling is standard. Emergency equipped fixtures labeled UL924. Adheres to LM70, LM80, and TM21 industry standards. DesignLights Consortium® (DLC) qualified product. Not all models of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which models are qualified.

Warranty

5 year warranty. See product specification sheet for further information.

Dimensions

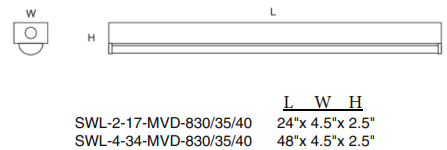

SWL Dimensions 2′ & 4′
Options

Emergency Battery backup

EML8

EML8
800lm

EML16- Emergency Battery Backup 1600Lm

EML16
1600lm

Controls

MOS

MOS
Integral Microwave Sensor, On/Off

MOSB

MOSB
Integral Bi-Level Microwave Sensor

Accessories

None Applicable

Configurations

Series

SWL
LED Stairwell Fixture

Form Factor

2- 24″ Length2
4- 48″ Length2

Rated Wattage

2′ Housing
17- 17W (2,210 Lumens)2

4′ Housing
34- 34W (4,420 Lumens)2

Driver Type

MVD- 120-277V; 0-10V Dimming2

CRI

8- 80+ CRI2

Color Temperature

30/35/40-
3000/3500/4000K2
Adjustable Switch

Quick Ship
Quick Ship & DLC Listed Configurations

SWL-2-17-MVD-830/35/40
SWL-4-34-MVD-830/35/40

Downloads

Catalog and Specification

• Technical Spec sheet Download
• Brochure Download

IES Files and Photometric Reports

  • Tool_IndoorLSL4-172401B-MVD(3000K)
  • SWL-2-17-MVD(3000K)
  • Tool_IndoorLSL4-172401B-MVD(3500K)
  • SWL-2-17-MVD(3500K)
  • Tool_IndoorLSL4-172401B-MVD(4000K)
  • SWL-2-17-MVD(4000K)
  • Tool_IndoorLSL4-344801B-MVD(3000K)
  • SWL-4-34-MVD(3000K)
  • Tool_IndoorLSL4-344801B-MVD(3500K)
  • SWL-4-34-MVD(3500K)
  • Tool_IndoorLSL4-344801B-MVD(4000K)
  • SWL-4-34-MVD(4000K)
  • SWL-2-17-MVD-830-35-40-IES
  • SWL-4-34-MVD-830-35-40 IES

Installation Instructions

  • Coming Soon!
