/ Products / Exit & Emergency Lights / Exit Signs / REXS™ Series – Recessed Edge Lit LED Exit Sign

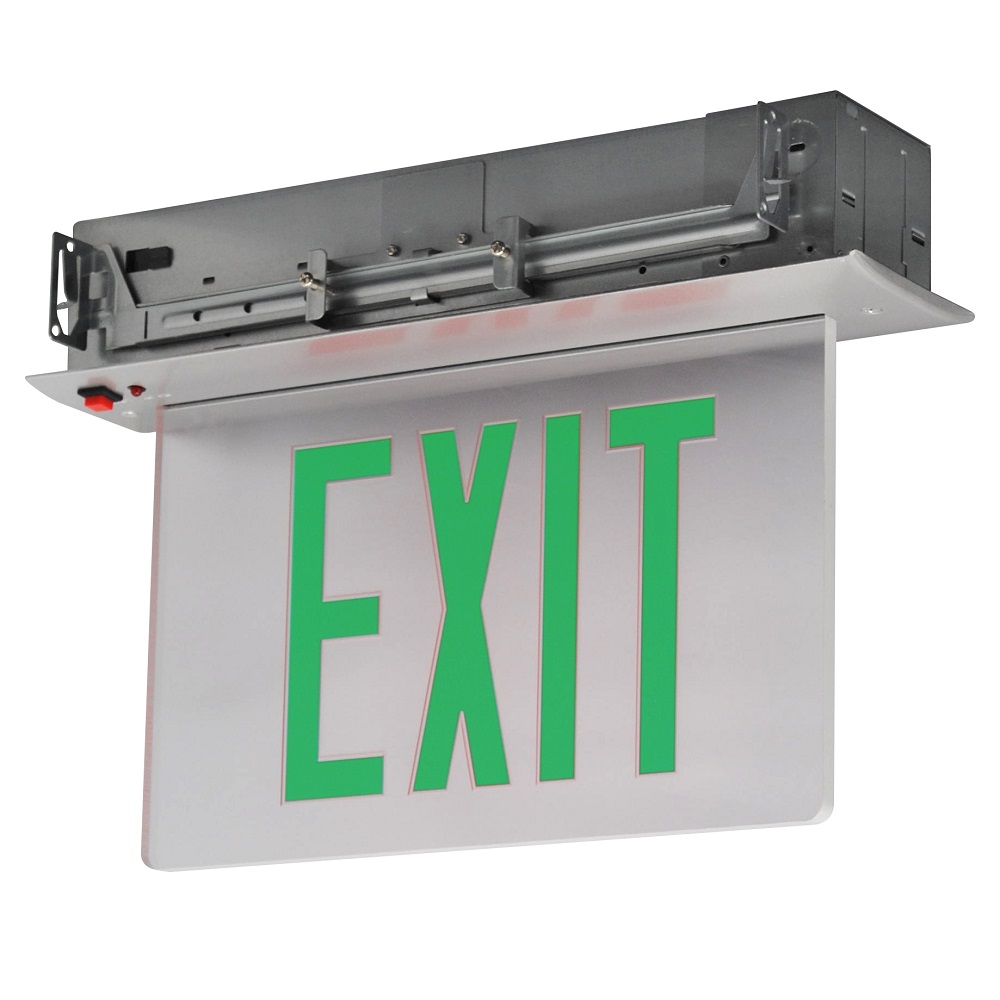

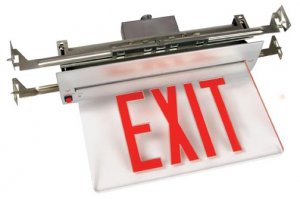

REXS™ Series – Recessed Edge Lit LED Exit Sign

REXS™ Series - Recessed Edge Lit LED Exit Sign

Description

The REXS Series is an recessed edge lit LED exit sign that features an architectural, slim design to fit into any environment offering specification grade aesthetics with in field installation flexibility. Attractive and functional, the REXS Series is completely self-contained and utilizes reliable, energy efficient LED illumination. REXS series edge-lit exits are well suited for any application requiring attractive edge-lit exit sign. Typical installations include commercial spaces such as retail, offices or medical facilities but can be applied in any space where an upgraded appearance is desired.

Features

  • Push-To-Test Switch.
  • Led Charge Indicator.
  • Maintenance Free, 6V Sealed Lead-Acid Battery.
  • Dual Voltage 120V/277V.
  • Specification Grade Design.
  • High-Polish, Injection-Molded Virgin Acrylic Panel, Ultrasonically Welded To Eliminate Visible Hardware.
  • Universal Mount.
  • Long Life Energy Saving Led Light Source.
  • Field Applied Chevron Directional Indicators.
  • Graduated Depth Of Molded Letters Provides.
  • Uniform Light Distribution On Graphics.
  • Mirror Divider On Double Face Versions.
  • AC And EM Models.

Product Listing

Specifications Features
Dimensions
Options
Configurations
Quick Ship
Downloads
Videos
Specifications Features
Construction

Premium-grade, extruded aluminum housing. Extruded aluminum trim assembly is easily detachable from below, providing accessibility for service or maintenance. (Available in optional black or white powder-coated finishes). Self-adhesive Chevron appliques and guide template provided for directional indication.

Electrical

Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. 4.8V long-life, maintenance-free, rechargeable NiCad battery. Internal solid-state transfer switch automatically connects the internal battery to the LED lamp head for minimum 90-minute emergency illumination. Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Warranty

5-year limited warranty on all electronics and housing. Battery pro rated for 5 years.

Dimensions

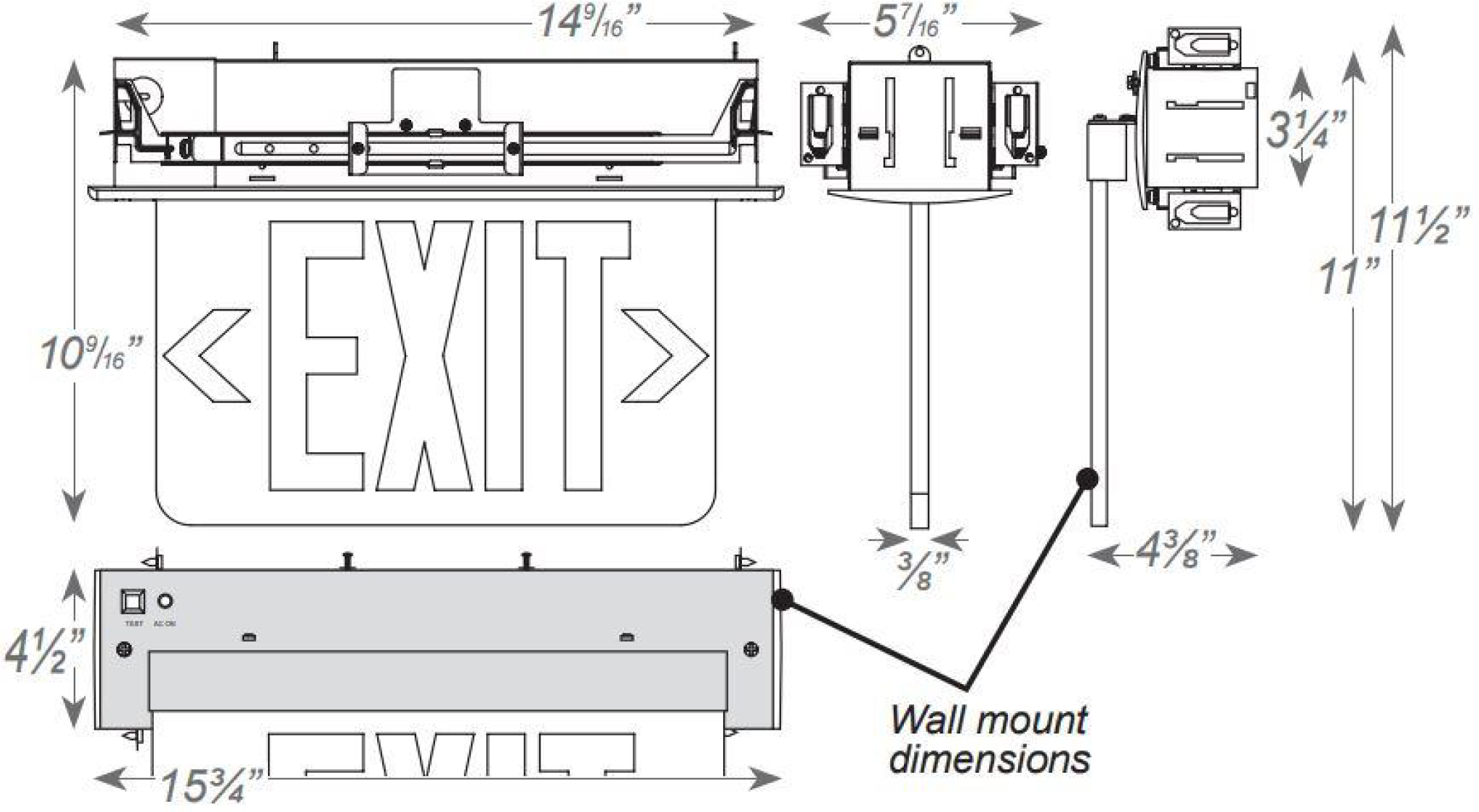

REXS Dimensions
Options

Emergency Battery backup

None Applicable

Controls

None Applicable

Accessories

None Applicable

Configurations

Series

REXS
Recessed Edge Lit LED Exit Sign

Faces

1-1
2-2

Housing

W-White
B-Black
A-Aluminum

Lettering

R-Red
G-Green

Battery

Option

Quick Ship
Quick Ship & DLC Listed Configurations

Made to order only

Downloads

Catalog and Specification

• Technical Spec sheet Download
• Sell Sheet

IES Files and Photometric Reports

  • None Applicable

Installation Instructions

  • REXS Installation Instructions
  • REXS Face Replacement
Videos
View Our

Related Products

DSO Series
LED Outdoor Ceiling Light

LIS Series LED Indoor Wall Sconce

AOE Series Adjustable Optics Emergency Light

LSA2 Series
LED Shoe Box Area Light

THF Series
Twin Head Floodlight

OWPL Series
Rectangular Outdoor Wall Pack

LAW Series
LED Architectural Wall Pack

ABH Series
Architectural LED Bulkhead
