/ Products / Commercial & Industrial Indoor / Retrofit Solutions / LDR Series – CCT Adjustable LED Door Retrofit

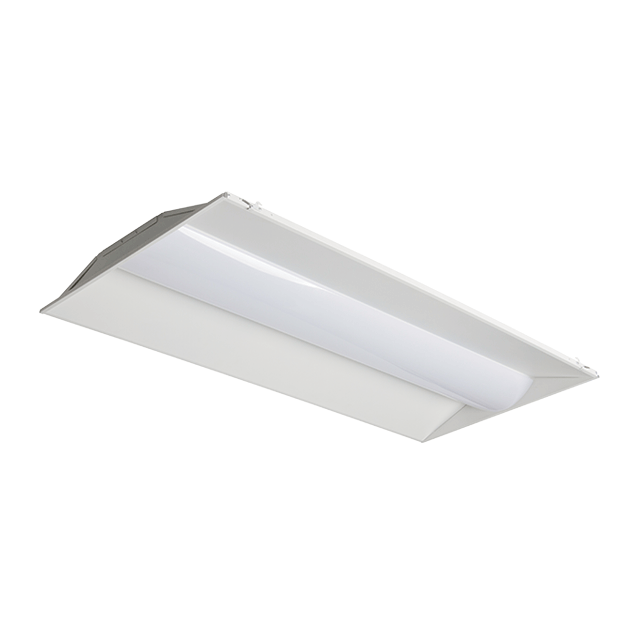

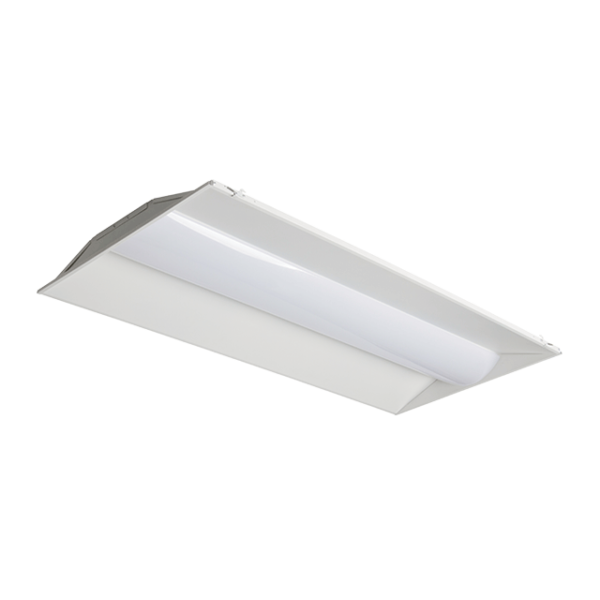

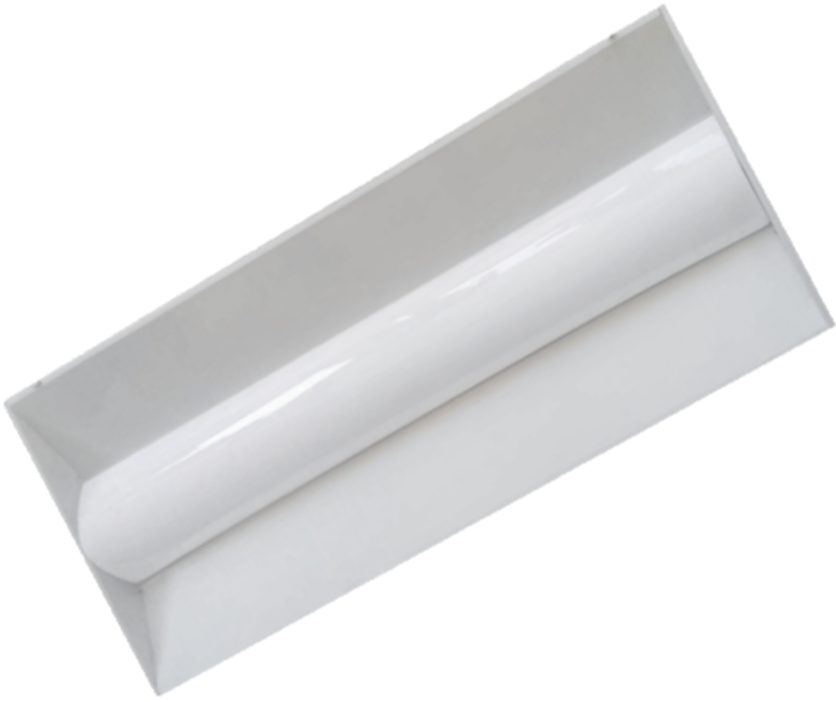

LDR Series – CCT Adjustable LED Door Retrofit

LDR Series - CCT Adjustable LED Door Retrofit

Description

The new GlobaLux LDR easily Retrofits existing 2×4 and 2×2 fluorescent troffers and parabolics to LED within minutes. The LDR adopts the latest in optical and LED technology for use in many commercial applications. The LDR provides a very pleasant volumetric soft light that fills any interior space giving it a larger, brighter, and more productive ambiance and will be the perfect fit for any commercial or institutional application. The LDR Series is fully dimmable and are compatible with building controls, motion sensors and daylight harvesting systems. The design of the LDR series panels produces an even, consistent shadow-less light. The LED’s enable long life, high lumen maintenance and high CRI and are low maintenance and constructed without hazardous materials.

Features

  • All reflective surfaces are finished after fabrication with high reflectivity white paint for uniform illumination.
  • Enclosed high efficiency lens provides visual comfort and high performance without pixelation.
  • Equipped standard with a 0-10V continuous dimming driver that works with any standard 0-10V control/dimmer.
  • Low W/ft2 ratio typically meets most restrictive lighting power density codes.
  • Long life, 60,000 hour LEDs at L80 reduce life cycle maintenance costs.
  • Battery backup available for emergency egress applications.
  • CCT adjustable at 3500/4000/5000K.

Product Listing

Specifications Features
Dimensions
Options
Configurations
Quick Ship
Downloads
Videos
Specifications Features
Construction

Rugged construction, solid die formed, cold-rolled steel housing. All surfaces powder coated after fabrication. Frosted acrylic diffuser provides even consistent light while reducing glare. lens design and materials provide uniform appearance without pixilation.

Installation

Mounting brackets adapt the LDR to fit nearly all existing Troffers.

Electrical

Equipped standard with 0-10V continuous dimming driver that works with any standard 0-10V control/ dimmer. Long-Life LED’s 60,000 hours at L80 with projected life over 100,000 hours for reduced life cycle maintenance costs. CCT adjustable at 3500K, 4000K 5000K.

Qualification

All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels. Damp location labeling is standard. Emergency equipped fixtures labeled UL924. Adheres to LM70, LM80, and TM21 industry standards. DesignLights Consortium® (DLC) DLC qualified product. Not all models of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which models are qualified.

Warranty

5-year Limited Warranty. See warranty documentation for more information.

Dimensions

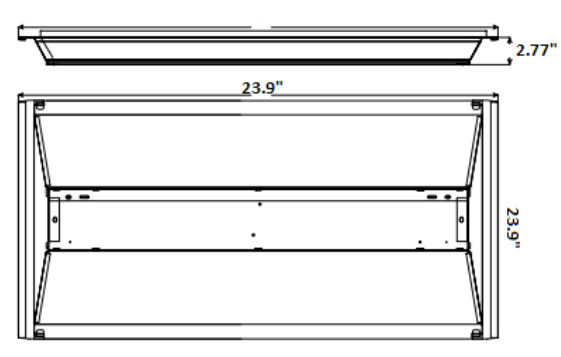

LDR-22 Dimensions

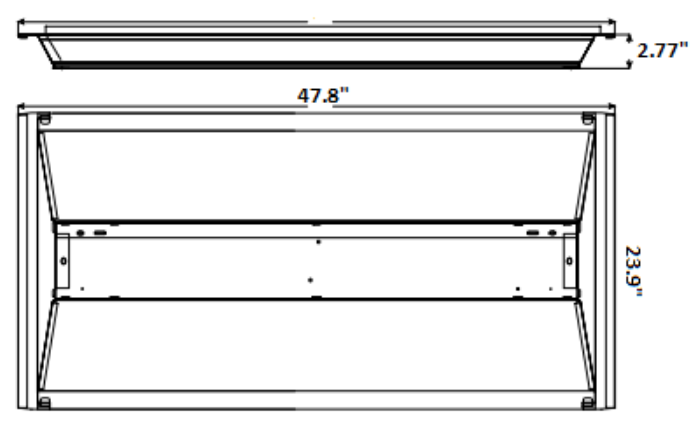

LDR-24 Dimensions
Options

Emergency Battery backup

EML8

EML8
Emergency Battery Backup 8W

dav

EML16
Emergency Battery Backup 16W

Controls

MOS

MOS
Integral Microwave Sensor

OS-Occupancy Sensor

OS
Fixture Mounted Occupancy Sensor

MOSB

MOSB
Bi-Level Microwave Sensor

Accessories

None Applicable

Configurations

Series

LDR- LED Door Frame Retrofit

Form Factor

22- 2”x2”²
24- 2”x4”¹

Rated Wattage

2×2 Housing
25- 25W (3,250 Lumens¹)
2×4 Housing
34- 34W (4,420 Lumens²)

Driver Type

MVD- 120-277V; 0-10V Dimming²

CRI

8 80+ CRI

Color Temp

35/40/50 3500K / 4000K / 5000K

Quick Ship
Quick Ship & DLC Listed Configurations

LDR-22-25-MVD-835/40/50
LDR-24-34-MVD-835/40/50

Downloads

Catalog and Specification

• Technical Spec sheet Download
• Brochure Download

IES Files and Photometric Reports

  • LDR-22-40-MVD-835/40/50 Photometric Report
  • LDR-22-40-MVD-835/40/50 IES File
  • LDR-24-52-MVD-835/40/50 Photometric Report
  • LDR-24-52-MVD-835/40/50 IES File

Installation Instructions

  • Coming Soon
Videos
