/ Products / Exit & Emergency Lights / Exit Signs / EXS™ Series – Edge Lit LED Exit Sign

EXS™ Series – Edge Lit LED Exit Sign

EXS™ Series - Edge Lit LED Exit Sign

Description

The EXS Series is an surface mount edge lit LED exit sign that features an architectural, slim design to fit into any environment offering specification grade aesthetics with in field installation flexibility. Attractive and functional, the EXS Series is completely self-contained and utilizes reliable, energy efficient LED illumination. EXS series edge-lit exits are well suited for any application requiring attractive edge-lit exit sign. Typical installations include commercial spaces such as retail, offices or medical facilities but can be applied in any space where an upgraded appearance is desired.

Features

  • Push-To-Test Switch.
  • Led Charge Indicator.
  • Maintenance Free, 6V Sealed Lead-Acid Battery.
  • Dual Voltage 120V/277V.
  • Specification Grade Design.
  • High-Polish, Injection-Molded Virgin Acrylic Panel, Ultrasonically Welded To Eliminate Visible Hardware.
  • Universal Mount.
  • Long Life Energy Saving Led Light Source.
  • Field Applied Chevron Directional Indicators.
  • Graduated Depth Of Molded Letters Provides `Uniform Light Distribution On Graphics.
  • Mirror Divider On Double Face Versions.

Product Listing

Specifications Features
Dimensions
Options
Configurations
Quick Ship
Downloads
Videos
Specifications Features
Construction

Premium-grade, extruded aluminum housing ( also available in optional black or white powder-coated finishes.).Self-adhesive Chevron appliques and guide template providedfor directional indication.

Installation

Aluminium mounting canopy included for top, end or back mount.

Electrical

Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. 3.6 long-life, maintenance -free, rechargeable NiCd battery. Internal solid-state transfer switch automatically connects the internal battery to the LED lamp head for minimum 90-minute emergency illumination. Fully automatic solid-state, two-rate charger initiates battery charging to recharging a discharged battery in 24 hours.

Qualification

Meets UL924, NFPA 11 Life Safety Code, NEC, OSHA Local and State Codes.UL Listed for damp locations ( 0º C – 50º C )

Warranty

5-year limited warranty on all electronics and housing. Battery pro rated for 5 years.

Dimensions

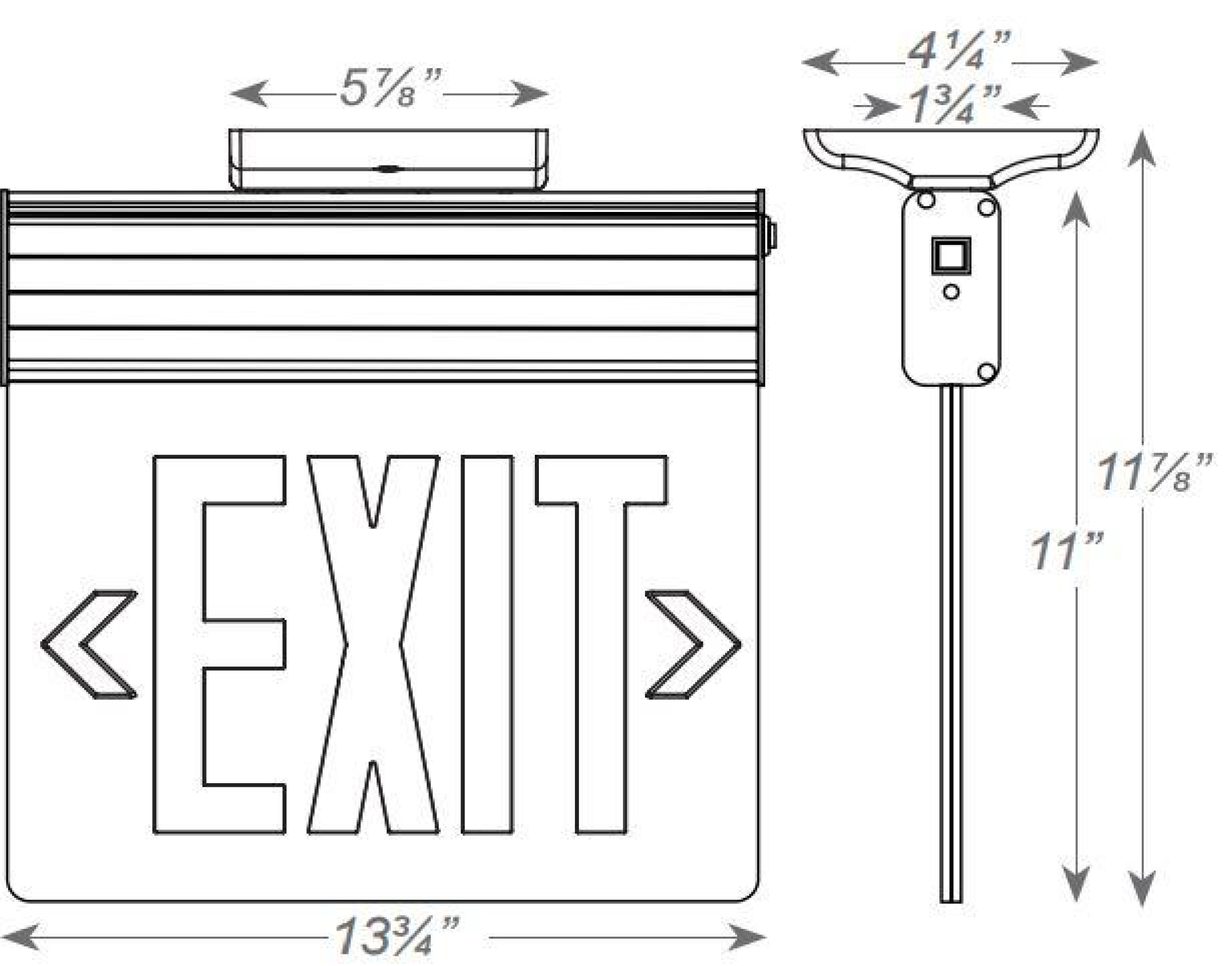

EXS Dimensions
Options

Emergency Battery backup

None Applicable

Controls

None Applicable

Accessories

None Applicable

Configurations

Series

EXS
Edge Lit LED Exit Sign

Faces

1-1
2-2

Housing Color

A- Aluminum

Lettering

R – Red
G – Green

Option

Blank- 90 minute battery backup
AC- AC only

Quick Ship
Quick Ship & DLC Listed Configurations

EXS-1-A-R
EXS-2-A-R

Downloads

Catalog and Specification

• Technical Spec sheet Download

IES Files and Photometric Reports

  • None Applicable

Installation Instructions

  • Coming Soon
Videos
View Our
