/ Products / Residential Indoor / LED Undercabinet Lighting / AUC™ Series – Angle & CCT Adjustable, Linkable Undercabinet

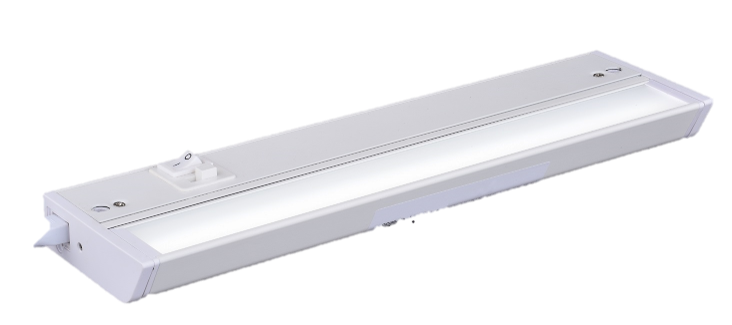

AUC™ Series – Angle & CCT Adjustable, Linkable Undercabinet

AUC™ Series - Angle & CCT Adjustable, Linkable Undercabinet

Description

The AUC series is a next generation, linkable or direct wire undercabinet fixture that provides task or accent lighting in commercial, retail, hospitality and residential applications. Standard knockouts are located on top, back or ends for direct connection. The AUC has the capability to adjust the light angle up to 90 degrees to illuminate the preferred area. Ideal for use under and over cabinets, display cases, task lighting, office lighting, coves, and utility/work areas.

Features

  • 90 degree angle light adjustment.
  • CCT tunable at 3000/4000/5000K.
  • Standard 120V, 15-100% dimming driver.
  • Available in 5 sizes 8, 12, 16, 24 or 36″.

Product Listing

Specifications Features
Dimensions
Options
Configurations
Quick Ship
Downloads
Videos
Specifications Features
Construction

Low profile aluminum housing available in white. Designed to prevent “hot spots” on counter tops. Lens design and materials provide uniform appearance without pixleation.

Electrical

Equipped standard with 120V 15-100% dimming driver, operating at 60Hz. Dims to 10%. CCT Adjustable at 3000K, 4000K, 5000K.

Qualification

All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels. Damp location labeling is standard. Emergency equipped fixtures labeled UL924. Adheres to LM70, LM80, and TM21 industry standards. ENERGY STAR® certified product (for 3000K and 4000K only) and Title 24 qualified. Dedicated 120V Models are FCC Title 47 CFR, Part 15, Class B for residential and commercial applications. California Title 24 Compliant, JA8 compliant, CEC Listed.

Warranty

3-year Limited Warranty.

Dimensions

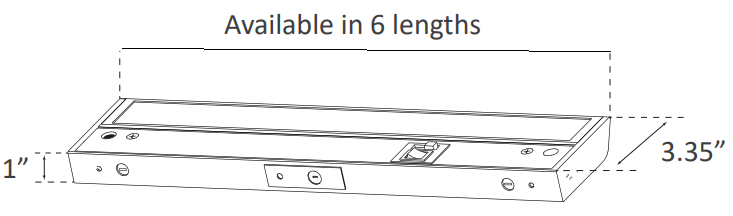

AUC WxH Dimensions

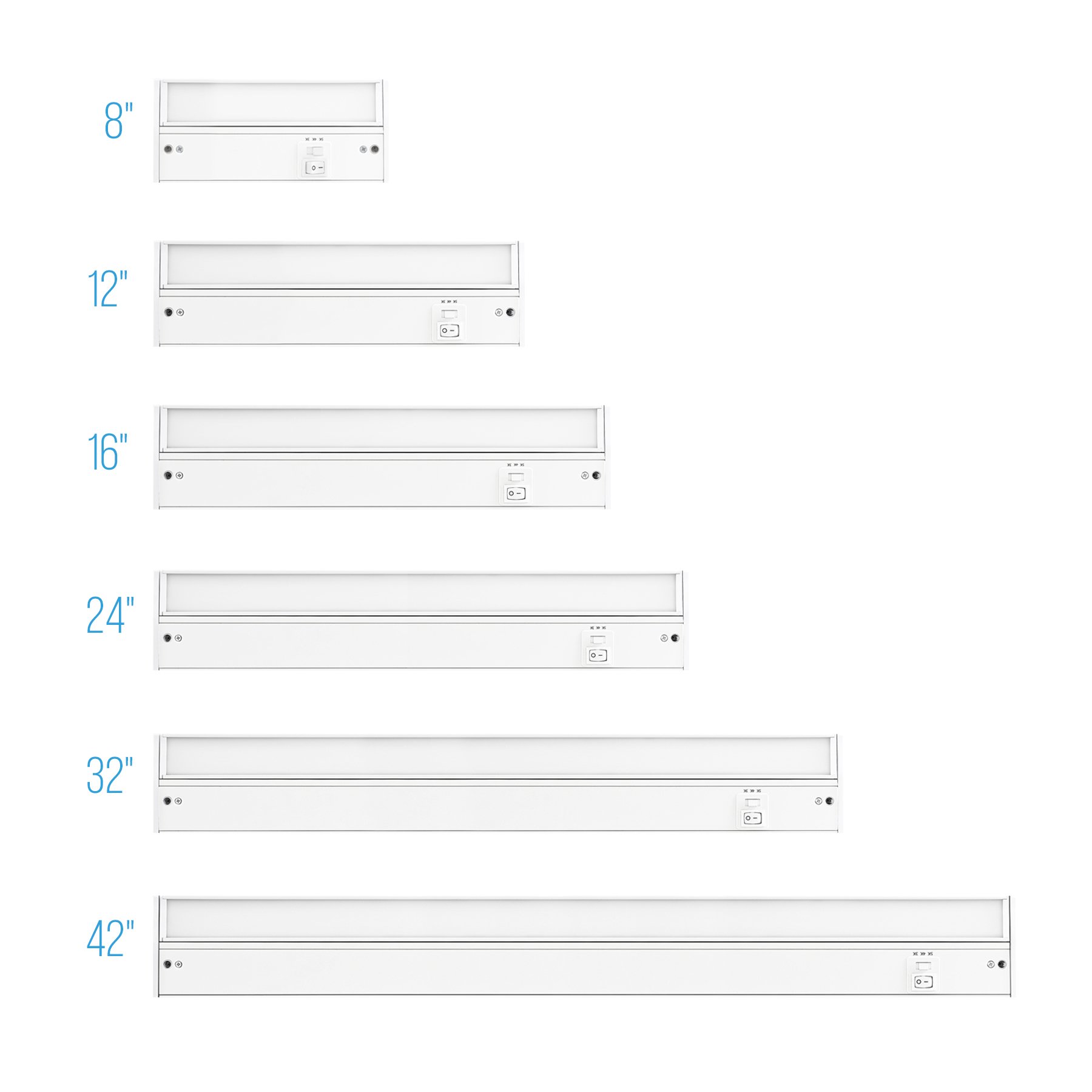

AUC Lengths Dimensions
Options

Emergency Battery backup

None Applicable

Controls

None Applicable

Accessories

None Applicable

Configurations

Series

AUC
Angle Adj, Linkable Undercabinet CCT Adj

Form Factor

8- 8″ Length²
12- 12″ Length²
16- 16″ Length²
24- 24″ Length²
32- 32″ Length²

Rated Wattage

5W-8″ Length²
5W-12″ Length²
9W-16″ Length²
9W-24″ Length²
14W-32″ Length²

Driver Type

120D- 120V, Dims to 10% dimming
Triac Dimming

CRI

9- 90+ CRI

Kelvin Temp

30/40/50- 3000/4000/5000K
Kelvin Adjustable

Finish

WH- White²

Quick Ship
Quick Ship & DLC Listed Configurations

AUC-8-5-120D-930/40/50-WH
AUC-12-5-120D-930/40/50-WH
AUC-16-9-120D-930/40/50-WH
AUC-24-9-120D-930/40/50-WH
AUC-32-14-120D-930/40/50-WH

Downloads

Catalog and Specification

• Technical Spec sheet Download
• Sell Sheet

IES Files and Photometric Reports

  • AUC-12-5-120D-930-40-50 IES File
  • AUC-12-5-120D-930-40-50 Photometric Report

Installation Instructions

  • AUC Installation Instructions
